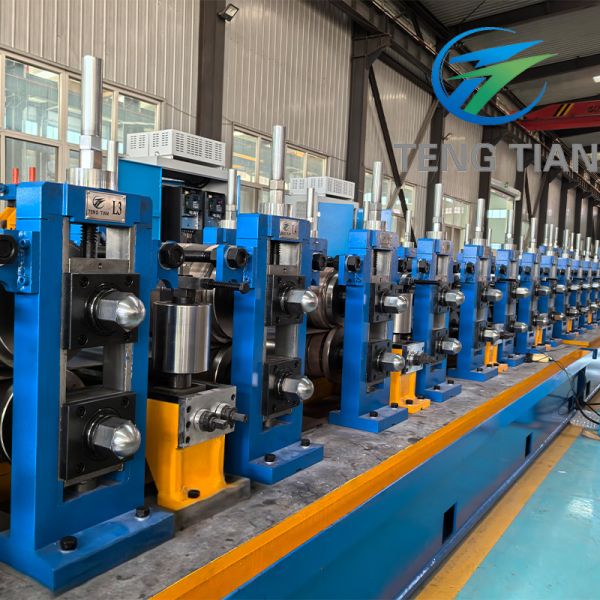

Automatic Tube Mill with High Frequency Welding 80m/min

Name: Automatic Tube Mill with High Frequency Welding 80mmin
Brand: TengTian
Price: 100000 USD

Brand Name : TengTian

Model Number : HG114

Certification : CE, ISO9001, BV

Place of Origin : Hebei

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C,T/T

Supply Ability : 50 Sets/Year

Delivery Time : 120 work days

Packaging Details : Export waterproof and Seaworthy packing.

Product name : Automatic Tube Mill with High Frequency Welding 80m/min

Warranty period : 1 year

Production period : 4 month

Forming method : Roller Squeeze

Welding method : High frequency induction welding

speed : 80 m/min

Warranty : One year

Material : Low carbon HRC

Forming type : direct forming

Work shop : 120 x 10 m, H＞7m ( crane to ground )

key words : Automatic Tube Mill

Contact Now

Automatic Tube Mill with High Frequency Welding 80m/min

Product Specifications

Attribute	Value
Product name	Full automatic tube mill
Warranty period	1 year
Production period	4 months
Forming method	Roller Squeeze
Welding method	High frequency induction welding
Speed	80 m/min
Material	Low carbon HRC
Forming type	Direct forming
Work shop	120 x 10 m, H＞7m (crane to ground)

Automatic Tube Mill with High Frequency Welding 80m/min

Product Overview

The high frequency straight seam welded pipe production line processes steel belt through a feeding unit, forming it into tube billets via rollers. Using high frequency proximity and skin effects, the strip edges are instantly heated to welding temperature and joined under pressure from squeezing rollers. The welded pipe then undergoes water cooling, sizing, and straightening to meet required specifications.

This production line incorporates innovative designs based on domestic and international equipment, optimized for operational simplicity and maintenance ease. With high machining quality and assembly precision, it produces electric welded steel pipes with exceptional accuracy.

Production Process

Automatic Tube Mill with High Frequency Welding 80m/min

Technical Specifications

Model	Side Length Range	Thickness	Production Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	6×6 - 16×16 mm	0.3-1 mm	30-120	55	7×50
HG32	9×9 - 25×25 mm	0.3-2.0 mm	30-120	75	7×50
HG50	12×12 - 40×40 mm	0.8-2.5 mm	30-110	110	7×60
HG60	15×15 - 47×47 mm	0.8-3 mm	30-100	132	7×65
HG76	9×9 - 60×60 mm	1-3 mm	30-100	320	8×80
HG89	25×25 - 70×70 mm	1-4 mm	30-80	350	8×80
HG114	35×35 - 89×89 mm	1.5-5.0 mm	30-60	400	10×100
HG165	47×47 - 129×129 mm	3-7 mm	30-50	600	10×110
HG219	89×89 - 172×172 mm	4-8 mm	20-40	800	12×150
HG273	89×89 - 214×214 mm	4-10 mm	15-30	1000	18×160
HG325	129×129 - 255×255 mm	4-12 mm	10-30	1200	18×180
HG426	129×129 - 335×335 mm	4-16 mm	8-25	1400	18×180
HG508	172×172 - 400×400 mm	4-20 mm	8-20	2000	21×180

Recent technology expansion includes:

HG600: Production line for square welded pipes (max side length 600×600mm)
HG765: Production line for round welded pipes (max diameter 765mm)

Quality Assurance & Service Warranty

Pre-sales Service

Equipment photos provided before shipment to verify product authenticity
COVID-19 contingency: Online remote guidance for installation and commissioning when travel restrictions apply
When travel permitted: On-site engineer support for one month (buyer covers travel, accommodation, and salary)

After-sales Service

Under normal operation and proper maintenance, we provide 12 months warranty from equipment arrival date. For quality-related part failures affecting operation, we offer free repairs or replacements.

Factory Overview

Automatic Tube Mill with High Frequency Welding 80m/min
