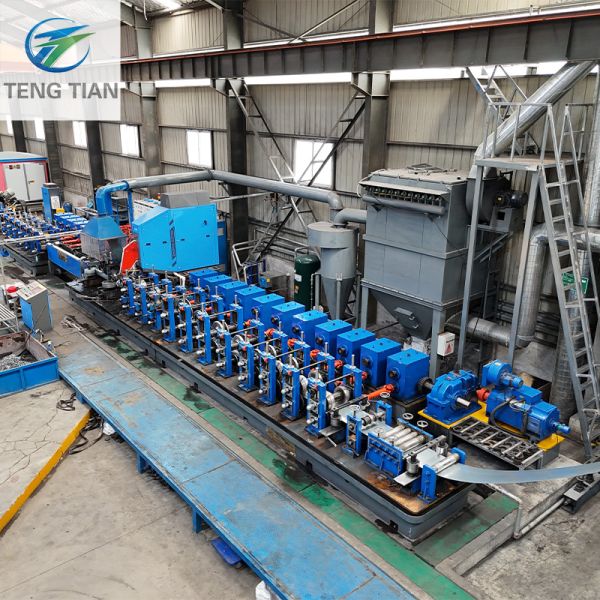

60X60mm Automatic Steel Welded Square Tube Mill
Product Specifications
| Attribute | Value |
| Production Name | Manual Or Automatic 60X60Mm Steel Welded Pipe Production Line Square Tube Mill Machine |
| Model | 60X60 |
| Feature | Manual Or Automatic |
| Other pipe | Round, square and rectangular pipe |
| Max size | 60X60 mm |
| Thickness | 0.5 - 4.0 mm |
| Length | 6 m - 12 m |
| Rollers | Include |
| Warranty | One year |
Product Overview
This high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions for pipe production.
Available Pipe Sizes
- Square pipe: 20X20-60X60mm
- Rectangular pipe: 20X25-40X80mm
- Pipe thickness: 0.5-4.0mm
Technical Specifications
Material Specifications
| Material | Low carbon steel, galvanized and carbon steel tube |
| Mechanical properties | σb≤520Mpa, σs≤340MPa |
| Strip width | 80 - 240 mm |
| Strip thickness | 0.5 - 4.0 mm |
| I.D of Coils | 508 mm |
| O.D of Coils | 1800 mm |
| Coil Weight | ≤ 3T |
Welded Pipe Specifications
| Pipe Diameter | 20X20～60X60 mm |
| Pipe thickness | 1.0 - 3.0 mm |
| Finish pipe length | 6 m |
| Cut length accuracy | ± 2 mm |
| Forming speed | 40 - 100 m/min |
Workspace Requirements
100 m X 8 m, at least 5m high
Note: Can be modified according to actual workshop length
Production Process Flow
- Coil preparation
- Coiling
- Uncoiling
- Head removal
- Leveling
- Cutting butt welding
- Looper storage
- Vertical roller alignment
- Delivery
- Vertical roller alignment
- Forming (13 frames)
- High frequency welding
- Five rollers extrusion
- External burr removal
- Smoothing roller
- Water cooling device
- Sizing machine
- Saw cutting
- Roller table after sawing
- Steel pipe conveying
- Collecting and packing

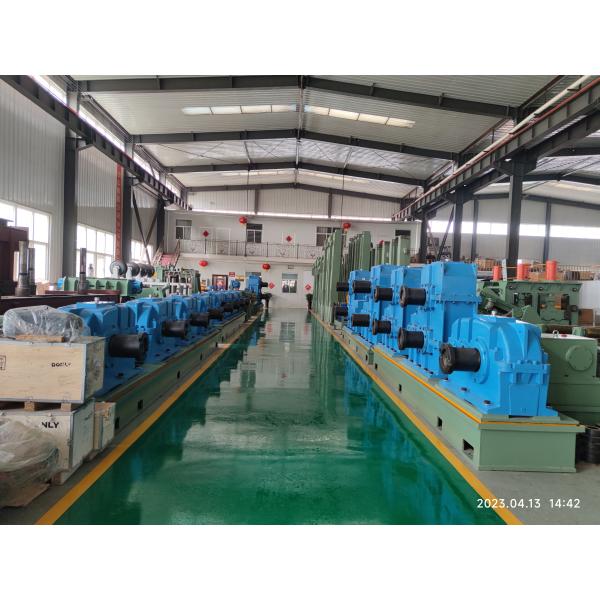

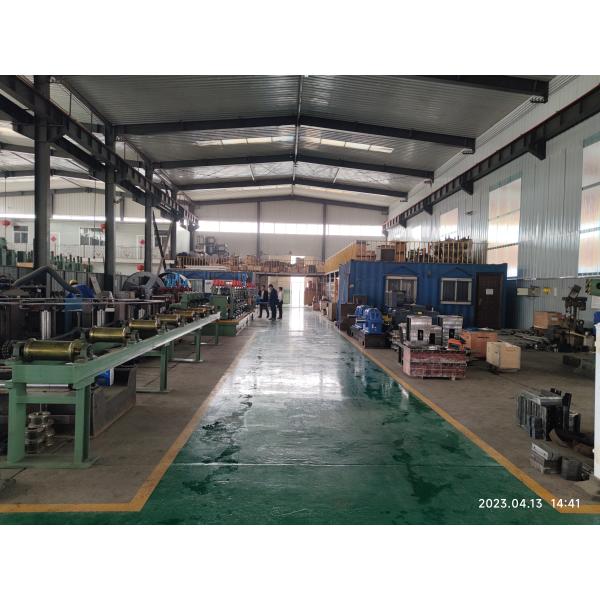

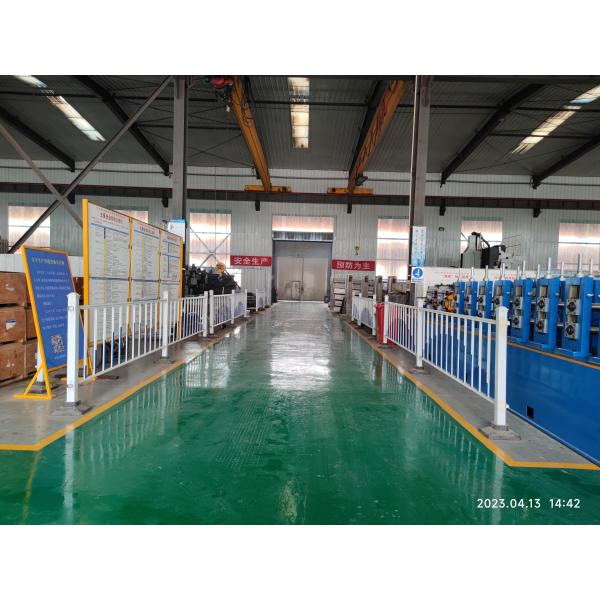

Factory Photos
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
FAQ:
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
